Hydraulic Filters for High Pressures

Hydraulic filters for high pressure applications

Filters are an essential component of every hydraulic system. Their function is to remove particle contaminants from the hydraulic fluid. These contaminants will reduce the life of system components through abrasive wear.

Our filter housings are ideal for all hydraulic filter applications and especially for protecting pressure regulators, servo valves and other low flow sensitive components. Also great for protecting pilot actuator valves and high flow pump discharge applications.

High Pressure Filters

We have a range of filter housing for high pressure applications up to 700 bar from stock and to 1500 bar (or higher if you need) available to order.

Duplex Arrangement

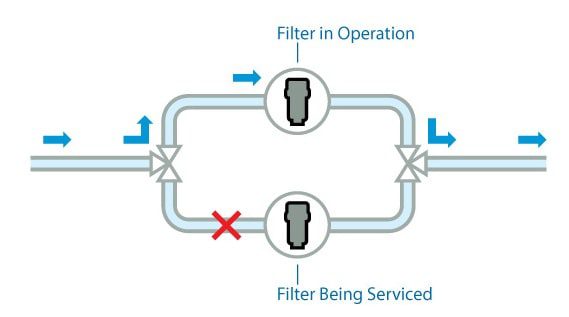

Element servicing without interrupting a continuous hydraulic & lube system operation is achieved by arranging the housings in a duplex formation using a pair of valves.

Hydraulic filter housings - duplex arrangement for servicing filter element

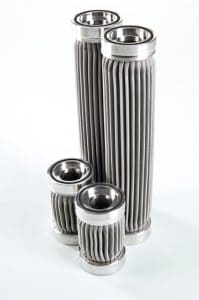

Pleated filter elements for hydraulic filter applications

Pleated Stainless Steels Filter Cartridges

Developed to fit our standard size filter housings these cartridges are from 316L stainless steel and have Viton seals. The welded construction of the cartridge ensures all wetted parts are stainless steel. Stock grades are 5, 25 and 50 micron with other types available to order.

Filter Housing Options

We can supply housings with Differential Pressure Indicators, Cartridge Bypass Valves.

We also produce housings with magnets and a combination of filter element and magnet.



Whatever your hydraulic filter application we are happy to discuss any details and designs with you – please call us on +44 (0)1634 724224 or email us your requirements to¬†[email protected]
